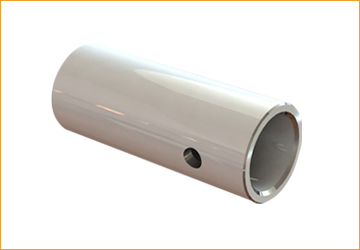

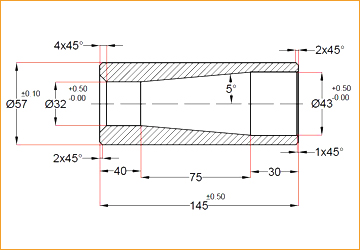

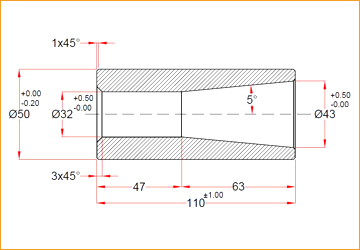

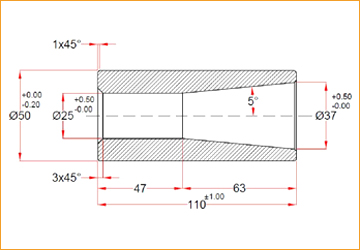

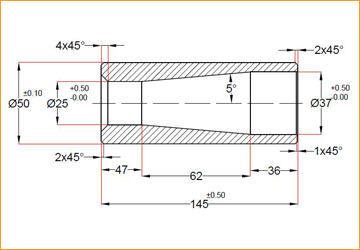

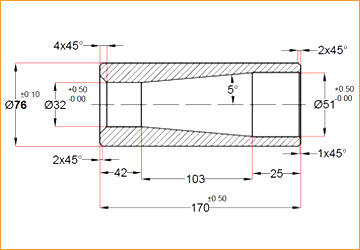

Tines Bushing
PART#LW50110C1
Conus 1 Bush For
36mm Bale Spear
PART#LW50145C1
Conus 1 Bush For
36mm Bale Spear
PART#LW50110C2
Conus 2 Bush For
42mm Bale Spear
PART# LW57145C2
Conus 2 Bush For
42mm Bale Spear

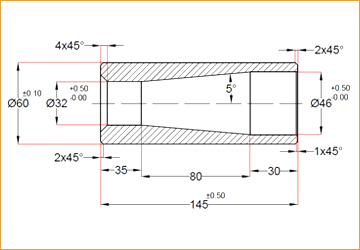

PART#LW60145C2
Conus 2 Bush For
45mm Bale Spear
PART# LW70170C2
Conus 2 Bush For
50mm
Heavy Duty
Bale Spear

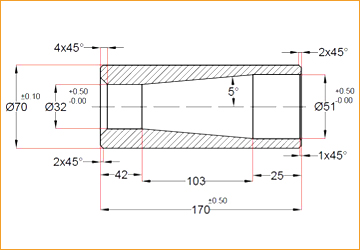

PART# LW76170C2
Conus 2 Bush For
50mm
Extra Heavy Duty
Bale Spear

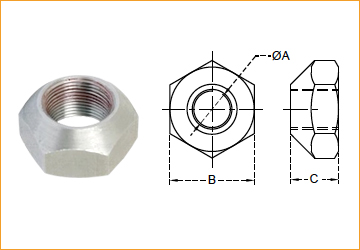

Tines Nuts
Oil Dipped (Rust Preventive)
Part Number |
Thread ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Ref. Number |
TNN-20153018 |
20X1.5 |
30 |
18 |
07989 |
TNN-22153218 |
22X1.5 |
32 |
18 |
07988 |
TNN-28154225 |
28X1.5 |
42 |
25 |
07986 |
TNN-30204225 |
30X2.0 |
42 |
25 |
07986 |

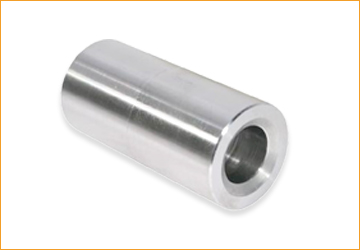

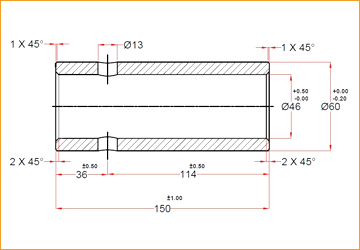

Tines Bushing
PART# LW60150BS45
Bolt On Bush For
45mm
Square Tapered
Bale Spear

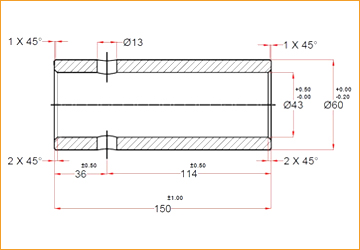

PART# LW60150BS42
Bolt On Bush For
42mm Ribbed Bale Spear

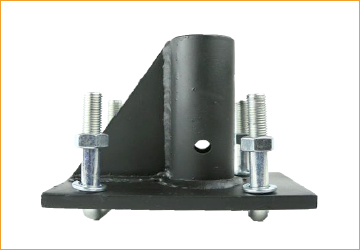

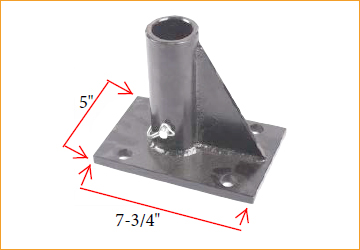

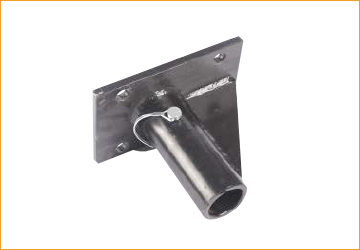

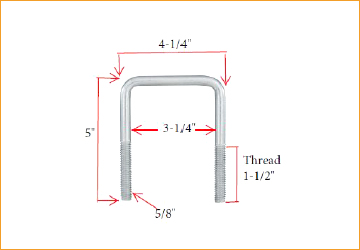

Bolt On-Bale Spear Bracket
PART#LW60150B45-KIT & PART#LW60150B42-KIT

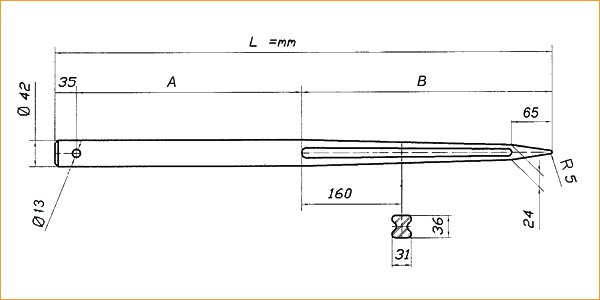

Փ42mm BOLT ON - RIBBED BALE SPEAR
PART No. |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
Wt. (Lbs.) |
LW42BOR32 |
42mm |
810mm (32") |
645mm (25.4") |
165mm |
3200 Lbs. |
|
LW42BOR39 |
42mm |
990mm (39") |
645mm (25.4") |
345mm |
3200 Lbs. |
|
LW42BOR43 |
42mm |
1100mm (43") |
645mm (25.4") |
455mm |
3200 Lbs. |
|
LW42BOR48 |
42mm |
1225mm (48") |
645mm (25.4") |
580mm |
3200 Lbs. |
|

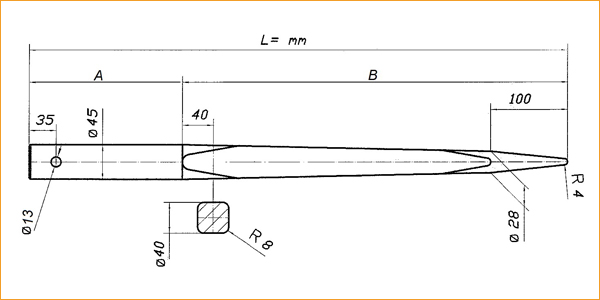

Փ45mm BOLT ON - SQUARE TAPERED BALE SPEAR
Part No. |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
Wt. (Lbs.) |
LW45BOS32 |
45mm |
810mm (32") |
625mm (24-5") |
185mm |
3500 Lbs. |
|
LW45BOS39 |
45mm |
990mm (39") |
625mm (24-5") |
365mm |
3500 Lbs. |
|
LW45BOS43 |
45mm |
1100mm (43") |
625mm (24-5") |
475mm |
3500 Lbs. |
|
LW45BOS49 |
45mm |
1250mm (49") |
625mm (24-5") |
625mm |
3500 Lbs. |
|

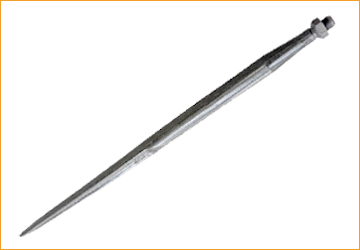

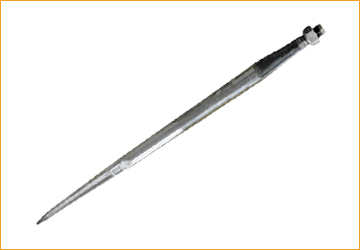

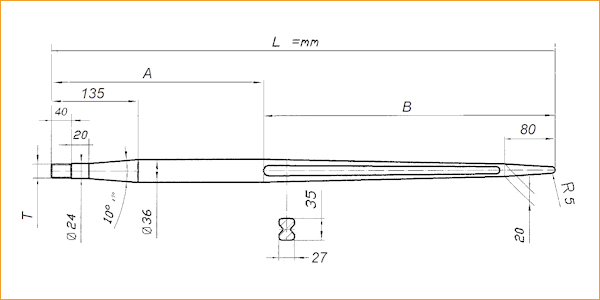

Փ36mm (Conus 1)-RIBBED BALE SPEAR
T1 Part No. (28x1.5) |
T2 # No. (30x2) |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
LW36R32-28 |
LW36R32-30 |
36mm |
810mm (32") |
610mm |
200mm |
1500 Lbs. |
LW36R39-28 |
LW36R39-30 |
36mm |
990mm (39") |
610mm |
380mm |
1500 Lbs. |
LW36R43-28 |
LW36R43-30 |
36mm |
1100mm (43") |
610mm |
490mm |
1500 Lbs. |
LW36R48-28 |
LW36R48-30 |
36mm |
1225mm (48") |
610mm |
615mm |
1500 Lbs. |

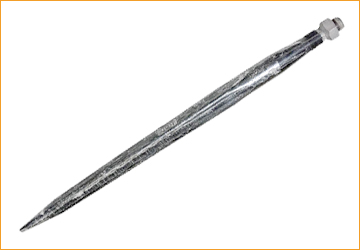

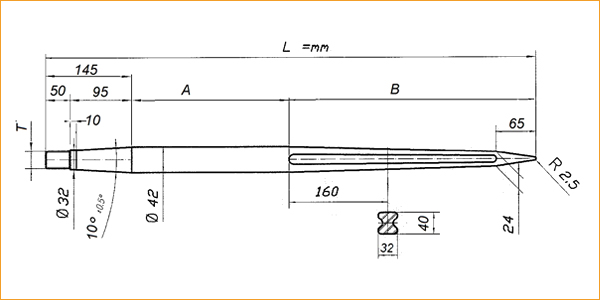

Փ42mm (Conus 2)-RIBBED BALE SPEAR
T= M(28x1.5) Part No. |
T= M(30x2) Part No. |
Dia.Փ |
L (TOTAL LENGTH) |
B |
A |
Max. Load |
LW42R32-28 |
LW42R32-30 |
42mm |
810mm (32") |
645mm (25.40") |
165mm |
3200 Lbs. |
LW42R39-28 |
LW42R39-30 |
42mm |
990mm(39") |
645mm (25.40") |
345mm |
3200 Lbs. |
LW42R43-28 |
LW42R43-30 |
42mm |
1100mm (43") |
645mm (25.40") |
455mm |
3200 Lbs. |
LW42R48-28 |
LW42R48-30 |
42mm |
1225mm (48") |
645mm (25.40") |
580mm |
3200 Lbs. |

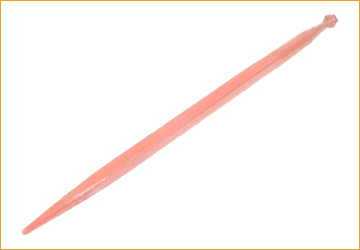

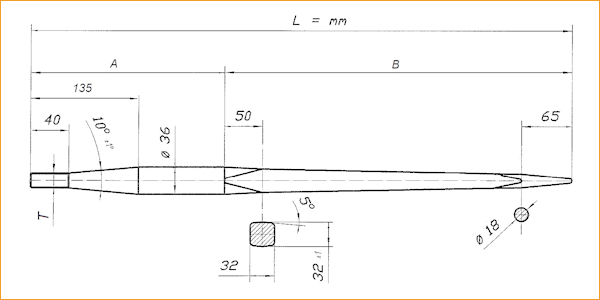

Փ36mm (Conus 1) - SQUARE TAPERED BALE SPEAR
T1 Part No. (20x1.5) |
T2 # No. (22x1.5) |
Dia.Փ |
L |
B |
A |
Max. Load |
LW36S24-20 |
LW36S24-22 |
36mm |
610mm (24") |
455mm (18") |
155mm |
1500 Lbs. |
LW36S27-20 |
LW36S27-22 |
36mm |
685mm (27") |
455mm (18") |
230mm |
1500 Lbs. |
LW36S32-20 |
LW36S32-22 |
36mm |
810mm(32") |
625mm (24.5") |
185mm |
1500 Lbs. |
LW36S39-20 |
LW36S39-22 |
36mm |
990mm (29") |
625mm (24.5") |
365mm |
1500 Lbs. |
LW36S43-20 |
LW36S43-22 |
36mm |
1100mm(43") |
625mm (24.5") |
475mm |
1500 Lbs. |
LW36S49-20 |
LW36S49-22 |
36mm |
1250mm(49") |
625mm (24.5") |
625mm |
1500 Lbs. |

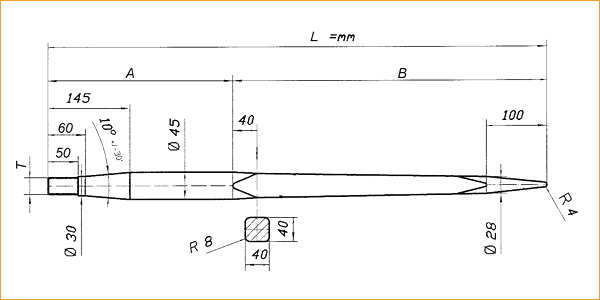

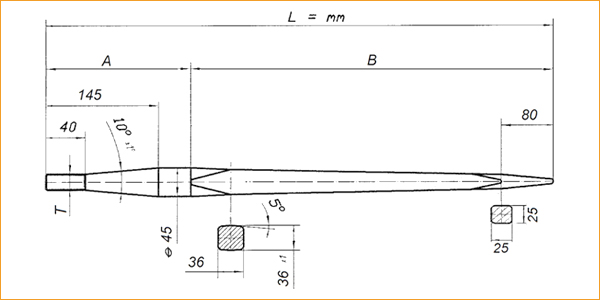

Փ45mm (Conus 2) - Economy SQUARE TAPERED BALE SPEAR
T=M(28x1.5) Part No. |
T2=M(30x2) Part No |
. Dia.Փ |
L |
B |
A |
Max. Load |
LW45S32-28 |
LW45S32-30 |
45mm |
810mm (32") |
625mm (24.5") |
185mm |
2700 Lbs. |
LW45S39-28 |
LW45S39-30 |
45mm |
990mm (39") |
710mm (28") |
280mm |
2700 Lbs. |
LW45S43-28 |
LW45S43-30 |
45mm |
1100mm (43") |
800mm (32") |
300mm |
2700 Lbs. |
LW45S49-28 |
LW45S49-30 |
45mm |
1250mm (49") |
800mm (32") |
450mm |
2700 Lbs. |
Փ45mm (Conus 2) - HEAVY DUTY SQUARE TAPERED BALE SPEAR
T=M(28x1.5) Part No. |
T=M(30x2) Part No. |
Dia.Փ |
L |
B |
A |
Max. Load |
LW45HDS32-28 |
LW45HDS32-30 |
45mm |
810mm (32") |
625mm (24-1/2") |
185mm |
3500 Lbs. |
LW45HDS39-28 |
LW45HDS39-30 |
45mm |
990mm (39") |
625mm (24-1/2") |
365mm |
3500 Lbs. |
LW45HDS43-28 |
LW45HDS43-30 |
45mm |
1100mm (43") |
625mm (24-1/2") |
475mm |
3500 Lbs. |
LW45HDS49-28 |
LW45HDS49-30 |
45mm |
1250mm (49") |
625mm (24-1/2") |
625mm |
3500 Lbs. |

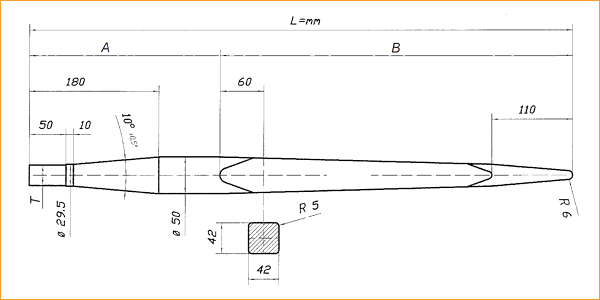

Փ50mm- EXTRA HEAVY DUTY SQUARE TAPERED BALE SPEAR
T= M(28x1.5) Part No. |
T= M(30x2) Part No. |
Dia.Փ |
L |
B |
A |
Max. Load |
LW50HDS32-28 |
LW50HDS32-30 |
50mm |
810mm (32") |
625 (24-1/2") |
185mm |
4800 Lbs. |
LW50HDS39-28 |
LW50HDS39-30 |
50mm |
990mm (39") |
625 (24-1/2") |
365mm |
4800 Lbs. |
LW50HDS43-28 |
LW50HDS43-30 |
50mm |
1100mm (43") |
625 (24-1/2") |
475mm |
4800 Lbs. |
LW50HDS49-28 |
LW50HDS49-30 |
50mm |
1250mm (49") |
625 (24-1/2") |
625mm |
4800 Lbs. |
LW50HDS55-28 |
LW50HDS55-30 |
50mm |
1400mmm (55") |
625 (24-1/2") |
775mm |
4800 Lbs. |
