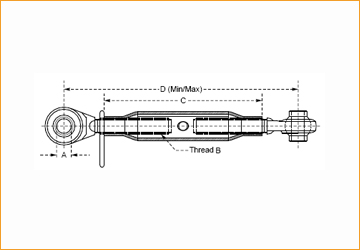

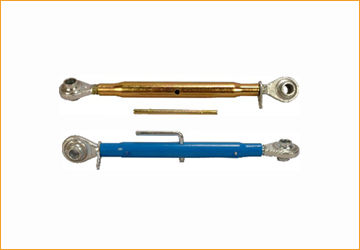

Top Link Assembly
Linkwell
Part No. |
Reference Number |
Popular Code |
Cat.
|
Pin Hole ØA (Inches) |
Threads B (Inches) |
Body Length C (Inches) |
Closed D (Inches) |
Open D (Inches) |
Color
|
Package Qty. |
Weight (lbs.) |
LWTPL9164 |
— |
TL197 |
0 |
5/8" |
3/4" NC |
13” |
18” |
Plated |
1 |
2.7 |
|
LWTPL9165 |
87299165 |
TL199 |
0 |
5/8" |
3/4" NC |
11" |
16" |
Plated |
1 |
2.5 |
|
LWTPL9166 |
87299166 |
TL1630 |
1 |
3/4" |
17" |
26" |
Plated |
1 |
7.4 |
||
LWTPL9167 |
87299167 |
251163DS |
1 |
3/4" |
16" |
21" |
31" |
Blue |
1 |
7.6 |
|
LWTPL9168 |
87299168 |
TL165 |
1 |
3/4" |
16" |
21" |
31" |
Plated |
1 |
7.6 |
|
LWTPL9170 |
87299170 |
9613747DS |
1 |
3/4" |
20" |
25" |
35" |
Blue |
1 |
9.1 |
|
LWTPL9171 |
87299171 |
TL166 |
1 |
3/4" |
20" |
25" |
35" |
Plated |
1 |
9.1 |
|
LWTPL9172 |
87299172 |
TL167 |
1 |
3/4" |
24" |
29" |
39" |
Plated |
1 |
8.9 |
|
LWTPL9173 |
87299173 |
9624607DS |
1 & 2 |
3/4" & 1" |
16" |
21" |
32" |
Blue |
1 |
9.1 |
|
LWTPL9174 |
87299174 |
TL1670 |
1 & 2 |
3/4" & 1" |
16" |
21" |
32" |
Plated |
1 |
9.1 |
|
LWTPL9175 |
87299175 |
B505450 |
1 & 2 |
3/4" & 1" |
20" |
25" |
35" |
Plated |
1 |
10.1 |
|
LWTPL9176 |
87299176 |
TL174 |
2 |
1" |
16" |
21" |
31" |
Plated |
1 |
10 |
|
LWTPL9178 |
87299178 |
TL176 |
2 |
1" |
20" |
25" |
37" |
Plated |
1 |
10 |
|
LWTPL9179 |
87299179 |
TL1730 |
2 |
1" |
20" |
30" |
Plated |
1 |
10.7 |
||
LWTPL9180 |
87299180 |
TL175 |
2 |
1" |
16" |
23" |
32" |
Blue |
1 |
13.4 |
|
LWTPL9181 |
87299181 |
TL1735 |
2 |
1" |
20" |
27" |
37" |
Plated |
1 |
12.6 |
|
LWTPL9183 |
87299183 |
TL187 |
3 |
37" |
Black |
1 |
20 |

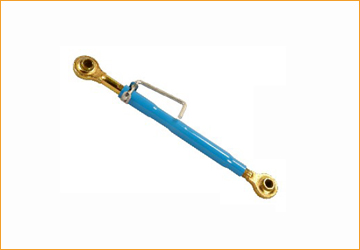

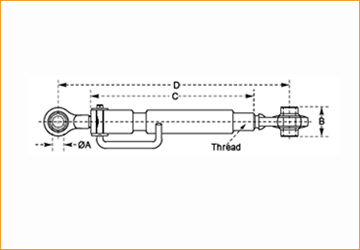

Ford Top Links
Linkwell |
Popular |
Cat. |
Ball ID |
Ball Length |
Thread |
Pipe Length |
Open Length-Min |
Open Length-Min |
LWSFD-11442511 |
S-11878 |
1 |
19.05 |
44 |
1-1/4" UNC |
425 |
622 |
794 |
LWSFD-11442512 |
S-3630 |
1 , 2 |
19.05 , 25.40 |
44 , 51 |
1-1/4" UNC |
425 |
622 |
794 |
LWSFD-11442522 |
S-3631 |
2 |
25.4 |
51 |
1-1/4" UNC |
425 |
622 |
794 |
LWSFD-11448522 |
- |
2 |
25.4 |
51 |
1-1/4" UNC |
485 |
685 |
857 |

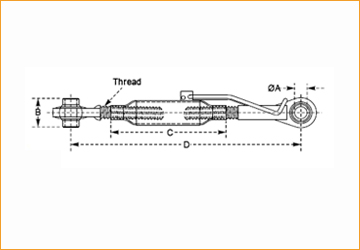

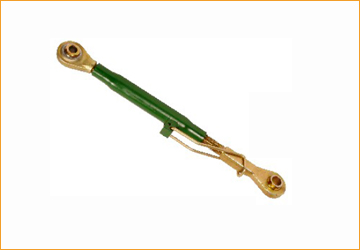

JD Top Links
Linkwell |
Popular |
Ball ID |
Ball Length |
Thread |
Pipe Length |
Open Length-Min |
Open Length-Min |
Part No. |
Code |
ØA (mm) |
B (mm) |
(inches) |
C (mm) |
D (mm) |
D (mm) |
LWSJD-11832012 |
S-4261 |
20 , 25.40 |
44 , 51 |
1-1/8" UNC |
320 |
550 |
760 |

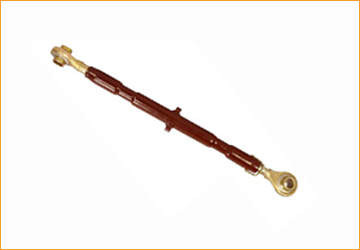

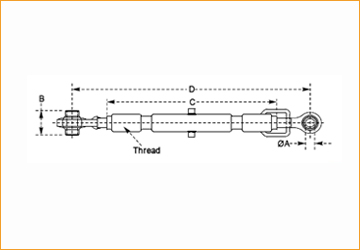

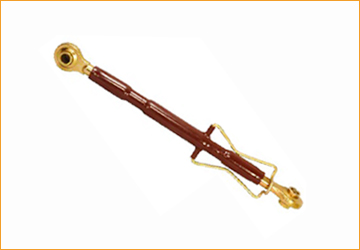

Massey Ferguson Top Links
Linkwell |
Popular |
Cat. |
Ball ID |
Ball Length |
Thread |
Pipe Length |
Open Length-Min |
Open Length-Min |
LWSMF-111643811 |
S-584 |
1 |
19.05 |
44 |
1-1/16"UNF |
438 |
590 |
750 |
LWSMF-111647611 |
S-585 |
1 |
19.05 |
44 |
1-1/16"UNF |
476 |
610 |
770 |
LWSMF-111654611 |
S-586 |
1 |
19.05 |
44 |
1-1/16"UNF |
546 |
670 |
830 |
LWSMF-111654622 |
S-587 |
2 |
25.4 |
51 |
1-1/16"UNF |
546 |
670 |
830 |
LWSMF-111654612 |
S-588 |
1 , 2 |
19.05 , 25.40 |
44 , 51 |
1-1/16"UNF |
546 |
670 |
830 |
LWSMF-111647612 |
S-589 |
1 , 2 |
19.05 , 25.40 |
44 , 51 |
1-1/16"UNF |
476 |
610 |
770 |
LWSMF-111647622 |
S-16066 |
2 |
25.4 |
51 |
1-1/16"UNF |
476 |
610 |
770 |
LWSMF-111643812 |
S-16521 |
1 , 2 |
19.05 , 25.40 |
44 , 51 |
1-1/16"UNF |
438 |
590 |
750 |
LWSMF-111643822 |
S-16522 |
2 |
25.4 |
51 |
1-1/16"UNF |
438 |
590 |
750 |
Linkwell |
Popular |
Cat. |
Ball ID |
Ball Length |
Thread |
Pipe Length |
Open Length-Min |
Open Length-Min |
LWS-11452722 |
S-15347 |
2 |
25.4 |
51 |
1-/14"UNC |
527 |
680 |
870 |
