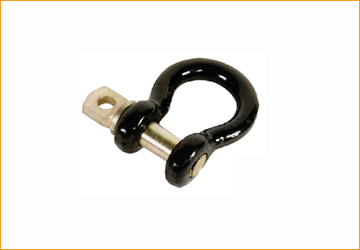

Farm Clevises

Linkwell
Part No.

Reference
Number

Popular
Code

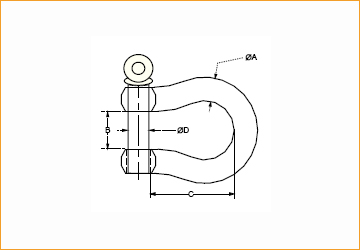

Body Dia
ØA (Inches)

Clevis Opening
B (Inches)

Usable Length
C (Inches)

Pin Dia
ØD (Inches)

Working Load Limit
(lbs.)

Package
Qty.

Weight
(lbs.)

LWFMCS9580

87299580

CL490401

1/4"

15/32"

1-1/8"

5/16"

1,000

1

0.10

LWFMCS9581

87299581

CL490402

5/16"

17/32"

1-1/4"

3/8"

2,000

1

0.20

LWFMCS9582

87299582

CL490403

3/8"

23/32"

1-7/16"

7/16"

3,000

1

0.30

LWFMCS9583

87299583

CL490404

7/16"

3/4"

1-11/16"

1/2"

4,000

1

0.50

LWFMCS9584

87299584

CL490405

1/2"

13/16"

1-15/16"

5/8"

6,500

1

0.70

LWFMCS9585

87299585

CL490406

5/8"

1-1/16"

2-1/2"

3/4"

9,000

1

1.50

LWFMCS9586

87299586

CL490407

3/4"

1-1/4"

3"

7/8"

13,000

1

2.20

LWFMCS9587

87299587

CL490408

7/8"

1-7/16"

3-1/4"

1"

15,000

1

3.50

LWFMCS9588

87299588

CL490409

1"

1-11/16"

3-3/4"

1-1/8"

17,000

1

5.20

LWFMCS9589

87299589

CL490410

1-1/8"

1-13/16"

4-1/4"

1-1/4"

24,000

1

7.00

LWFMCS9590

87299590

CL490411

1-1/4"

2"

4-1/2"

1-3/8"

28,000

1

9.50
