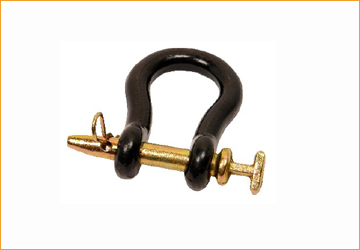

Straight Clevises

Linkwell
Part No.

Reference
Number

Popular
Code

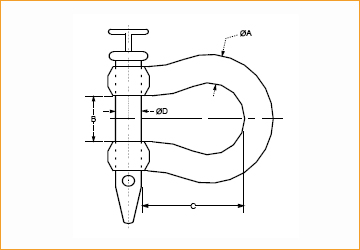

Body Dia
ØA (Inches)

Clevis Opening
B (Inches)

Usable Length
C (Inches)

Pin Dia
ØD (Inches)

Working Load Limit
(lbs.)

Package
Qty.

Weight
(lbs.)

LWSTCS9563

87299563

CL490103

5/8"

7/8"

3-1/4"

1/2"

6,000

1

1.50

LWSTCS9564

87299564

CL490104

3/4"

1-5/16"

3-3/4"

5/8"

12,000

1

2.50

LWSTCS9565

87299565

CL490105

7/8"

1-5/16"

3-1/4"

3/4"

16,000

1

3.00

LWSTCS9566

87299566

CL490106

7/8"

1-5/16"

4-1/4"

3/4"

16,000

1

3.60

LWSTCS9567

87299567

CL490107

15/16"

1-7/16"

4-5/8"

7/8"

20,000

1

4.30

LWSTCS9568

87299568

CL490108

1"

2-1/8"

5-5/16"

1"

25,000

1

5.80
